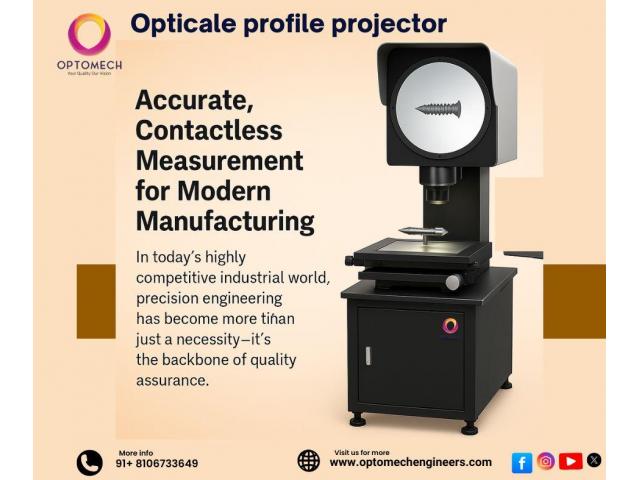

Optomech’s PP300TE Optical Profile Projector is engineered for precise, non-contact 2D measurement of mechanical components like gears, cams, stampings, threads, and complex profiles — widely used in defence, aerospace, dies & moulds, auto components, and electronics industries.

Equipped with telecentric projection optics, the system guarantees uniform magnification at all distances with extremely low distortion.

✅ Ø300 mm glass screen with 90° cross-lines
✅ High-resolution telecentric projection lens (10x std., up to 100x opt.)
✅ Precision X-Y stage with cross-roller guides
✅ Quick-release screwless stage design for rapid movement
✅ Twin halogen fiber optic illumination (Contour & Surface)
✅ Projection accuracy: ±0.1%
✅ Load capacity: 25 kg
✅ Multiple DRO options:

OP-250 (Simple 3-axis with one-click features)

OP-500 (Geometric DRO with optical edge detection)

OP-1000 (PC-based metrology software with DXF import, reverse engineering, full reporting)

Compact. Reliable. Calibrated with NABL-traceable master scale.

Used by over 1000+ customers including DRDO, Ordnance Factories, IITs, and leading private engineering firms.
